Review Digital Theodolite Nikon NE101 Di Manado
Hubungi Kami @
Digital Theodolite Nikon NE101 Di Manado
Alat Ukur Indosurta bergerak di bidang penjualan, penyewaan dan service kalibrasi alat-alat survey. Kami hadir lebih luas dan lebih dekat untuk melayani kebutuhan pengukuran anda di bidang konstruksi, telekomunikasi, kehutanan, pertambangan, kelautan, dll.

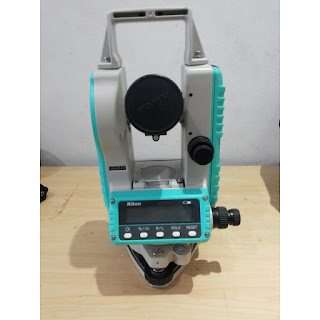

Digital Theodolite NE-101
Spesifikasi - Digital Theodolite Nikon NE101
Baca juga ini: Mengenal Fungsi GPS Pemetaan di Survey
Specifications:
NE-101
| |
TELESCOPE
| |
Effective diameter of objective:
|
1.77 in (45 mm)
|
Magnification:
|
30x
|
Image:
|
erect
|
Field of view:
|
1°20' (2.3ft at 100 ft / 2.3m at 100 m)
|
Minimum focusing distance:
|
2.3 ft (0.7 m)
|
Stadia multiplier constant:
|
100
|
Stadia additive constant:
|
0
|
Reticle illuminator:
|
provided
|
ANGLE MEASUREMENT
| |
Reading system:
|
photoelectric incremental encoder
|
Circle diameter:
|
3.1 in (79 mm)
|
Unit of reading:
|
degree / gon / mil
|
Minimum digital reading¹:
|
5/10", 1/2 mgon, 0.02/0.05 mil
|
Accuracy (DIN 18723)
|
7" / 2 mgon
|
DISPLAY/KEYPAD
| |
Front
| |
Type:
|
dot-matrix LCD (20 characters x 2 lines)
|
Backlight:
|
1-level illumination
|
Keypad:
|
5 buttons
|
Rear
| |
NE-101
| |
OPTICAL PLUMMET
| |
Magnification:
|
2.2x
|
Field of view:
|
5°
|
Focus range:
|
4.3 ft (1.3 m) fixed
|
LEVEL SENSITIVITY
| |
Plate level:
|
40" / 2 mm
|
Circular level:
|
10' / 2 mm
|
LEVELING BASE
| |
Type:
|
detachable
|
NE-101
| |
AMBIENT TEMPERATURE RANGE
|
-4 TO 122 °F (-20 to 50 C)
|
ENVIRONMENTAL RATING
|
IP54
|
DIMENSIONS
| |
Instrument:
|
6.0 x 6.8 x 13.1 in (153.5 x 172 x 334 mm)
|
NE-101
| |
WEIGHT
| |
Instrument:
|
9.8 lbs (4.5 kg)
|
Carrying case:
|
5.4 lbs (2.5 kg)
|
POWER SUPPLY
| |
Battery type:
|
1.5V alkaline AA x 6
|
Continuous operating time (at 68 °F / 20C)
|
48 hrs
|
Paket Penjualan:
What's in the Box:
- Nikon NE-101
- Rambu ukur / leveling staff
- Allumunium tripod
Beli juga ini: Pole Stik
