Review Total Station Gowin TKS-202
Alat Ukur Indosurta bergerak di bidang penjualan,
penyewaan dan service kalibrasi alat-alat survey. Kami hadir lebih luas dan
lebih dekat untuk melayani kebutuhan pengukuran anda di bidang konstruksi,
telekomunikasi, kehutanan, pertambangan, kelautan, dll.

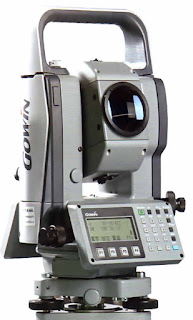

Total
Station Gowin TKS-202
Finest
Quality, Only From Gowin
Leveraging
on Topcon’s optimal manufacturing excellences; GOWIN ensured
every single production process of the TKS-202 Total Station is in compliance
with international standards and went through strigent quality control.
From
fully-automated EDM trials, to 48 hours of non-stop extreme environment
conditioning testing, GOWIN Total Station demonstrated
its durability and operational superiority, highlighting GOWIN commitment
to constantly improve.
The
Topcon Gowin Total Station TKS-202 is ideally suited for all jobs requiring the
accuracy and versatility of a high-quality total station. Its ease of use makes
it ideal for construction jobs like layout. It’s 2-second accuracy makes it
perfect for the most demanding surveying and measuring tasks. Its low price
makes it the right choice for every budget.
The Topcon
Gowin Total Station TKS-202 provides an accurate, low cost measuring solution
featuring:
- 2″ angle accuracy provides
1/16th of an inch accuracy at 1,000ft.
- Dual keyboards with and
expanded numeric keypad for faster data input.
- Accurately measure up to 2,000m
with a single prism.
- Internal data storage for up to
24,000 points.
- Single axis compensator with
±3′ compensating range.
- IP54 environmental protection
rating.
Spesifikasi
- Total Station Gowin TKS-202
Topcon Gowin Total Station TKS-202 Technical Specifications:
Model
Name
|
Gowin
TKS-202
|
|
Telescope
|
Objective
Lens Diameter
|
45mm
(EDM: 50mm)
|
Magnification
|
30x
|
|
|
Erect
|
|
Field
of View
|
1°30′
|
|
Resolving
Power
|
3.0″
|
|
Min.
Focus Distance
|
1.3m
|
|
Angle Measurement
|
Accuracy
|
2″
|
Method
|
Absolute
|
|
Minimum
Reading
|
1″/5″
|
|
Distance
Measurement
|
||
Distance Range
|
1
Prism
|
2,000
|
3
Prisms
|
2,700m
|
|
Accuracy
|
±(+2mm
+ 2ppm x D**)m.s.e.
|
|
Measuring Time
|
Fine
Measurement Mode
|
1.2
sec.(Intial 4 sec.)
|
Coarse
Measurement Mode
|
0.7
sec.
|
|
Tracking
Measurement Mode
|
0.4
sec.
|
|
Atmospheric Correction Range
|
Yes
|
|
Prism Constant Correction Range
|
Yes
|
|
Software & Memory
|
||
On-Board Software Functions
|
Data
Collection, Resection, Road, Stakeout, Area Calculation, Height Measurement,
etc.
|
|
Internal Memory
|
24,000
points
|
|
Interface
|
RS-232C
(Standard)
|
|
Display
|
Display
Unit
|
Graphics
LCD, 2 Sides
|
Keyboard
|
24-Alpha-Numeric
Key
|
|
Tilt
Correction (Automatic Index)
|
||
Tilt Sensor
|
Yes
|
|
Correction Method
|
Liquid
Type
|
|
Compensating Range
|
±
3′
|
|
Level
Senstivity
|
||
Plate Level
|
30″/2mm
|
|
Circular Level
|
10′/2mm
|
|
Optical
Plummet Telescope
|
||
|
Erect
|
|
Magnification
|
3x
|
|
Focusing Range
|
0.5
to infinity
|
|
Field of View
|
3°
and above
|
|
Others
|
||
Protection against water and
dust***
|
IP
54 (with BT-L1 Battery)
|
|
Operating Temperature
|
-20°C~+50°C
(-4°F~+122°F)
|
|
Dimension
|
336
(H) x 184 (W) x 172 (L)mm
|
|
Weight (with Battery)
|
4.8Kg
|
|
On Board Battery
|
BT-L1
(Lithium-ion)
|
|
Battery Charger
|
BC-L1
|
|
Maximum
Operating Time
|
||
Including Distance Measurement
|
14
Hours
|
|
Angle Measurement Only
|
60
Hours
|
|
Output Voltage
|
DC
10V
|
|
Paket
Penjualan:
Kelengkapan
Paket:
- Unit Totalstation Gowin
- 2x Tripod
- 1x Prisma Polygon
- 1x Prisma Detail + Pole
- CD Software dan Kabel data
